Estonian Basic Map 1:10 000
The Estonian Basic Map is a seamless digital topographic database with a nationwide coverage. It contains information on utilities (roads, electric power lines, etc.), settlement, hydrography, place names and land use. The accuracy and content corresponds to the mapping scale of 1:5000- 1:10 000. The used projection is L-EST97 (epsg:3301).
Data is available in following formats: vector (MapInfo TAB, ESRI Shape or GDB), color or monochrome raster (GeoTIFF). In total there are 2083 map sheets (5*5km each).
- Legend of Estonian Basic Map (Estonian/English) ( 496.3 KB, 13.02.2019 )
- Legend of monochrome Estonian Basic Map raster (Estonian/English) ( 424.97 KB, 13.02.2019 )
The map is updated once a year (in whole) and the latest, 2019 version, is made from 8.12.2018 database dump. The map is based on the core Estonian Topographic Database, which is updated on a daily basis by the Land Board's employees.
|Format||Esri GDB, ESRI SHP, MapInfo TAB, Bentley DGN v8 ja GeoTIFF|
|Data structure||vector and raster|
|Scale||1:10 000, urban areas 1:5000|
|Update frequency||Annually (the latest update from 8.12.2018)|
|Litsents||Land Board Open Data License
Please refer to the Land Board and date when using the data. For example: "Base map: Land Board 2019"

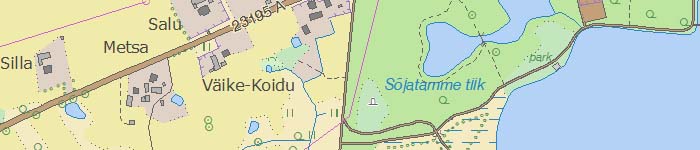

The map has several outputs: a vector map, a colored raster map (with or without hillshade) and a monochrom raster map.
